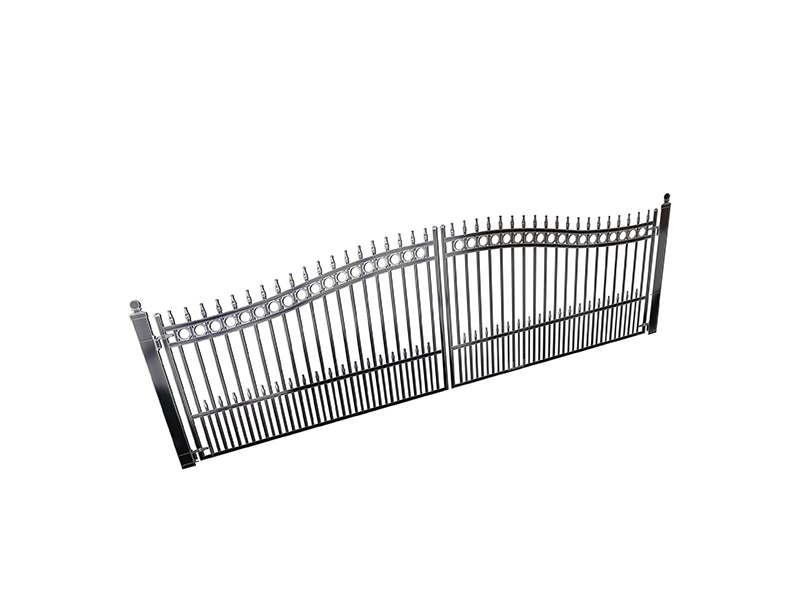

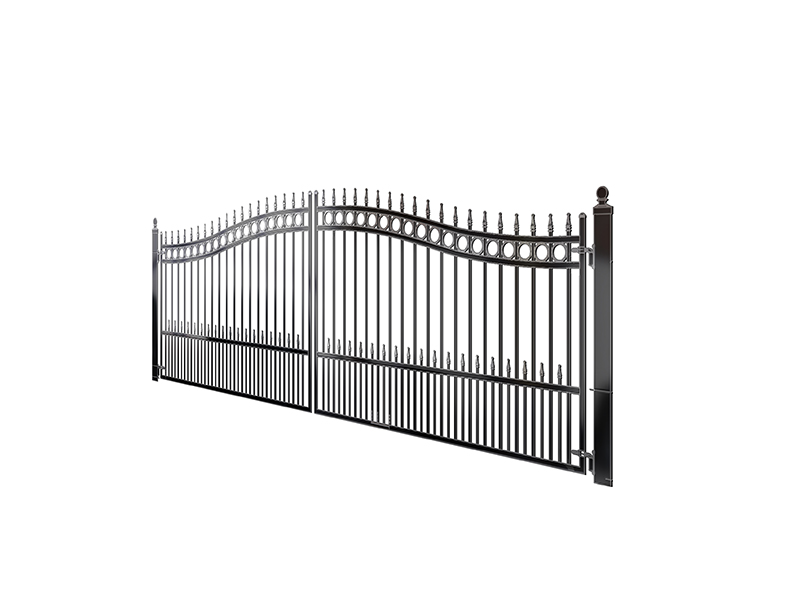

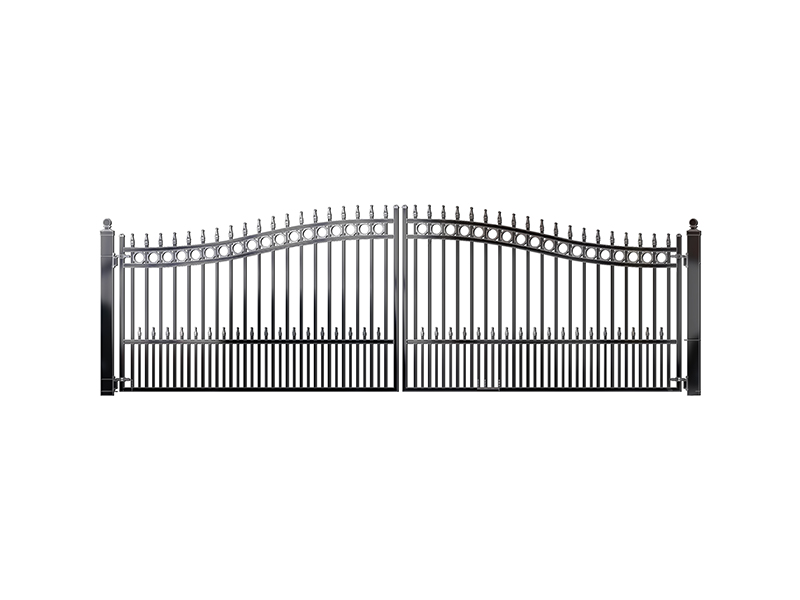

EVWOI-10
EVWOI-10
With decades of experience, Evershine gates and railings are designed and handcrafted to clients' specifications.
We offer a great selection of wrought iron gates in our range to secure your property and enhance the overall appearance.
We merge practicality with excellence in craftsmanship, providing a bespoke solution.We manufacture all of our wrought iron styles gates to the highest standards.
Specification:
EVWOI-10
Size: 16"X6'6"
Vertical Frame : 1 1/2“X1 1/2" SQUARE TUBE
Horizontal Frame: 1 1/2"x3/4"RECTANGULAR TUBE
Vertical Pickets : 3/4"x3/4" SQUARE TUBE
Dog Pickets : 1/2"x1/2" SQUARE TUBE
Decoration : 3/8"x3/8"SOLID BAR
Accessories Supplies With Set:
HINGESx2 PAIR
BALLTOP/SPEAR HEAD X1SET
Accessories order separately if required:
Post option#1- Hinge post set pce: Flat top- 5"X5"X7'6" LongX2
Post option#2- Hing post set pce: Flat top- 3.5"X3.5"X7.6 LongX2
Manually operated kit includes
· Latch X 1 set
· Drop bolt X 1 set
Finish Specification:
Fully Hot Dip Galvanized ASTM A123/A 123M-08 (80→120 μm THK)
Powder Coating: Black/Smooth/Matte 25+-5/RAL 9005 (60→80 μm THK)
